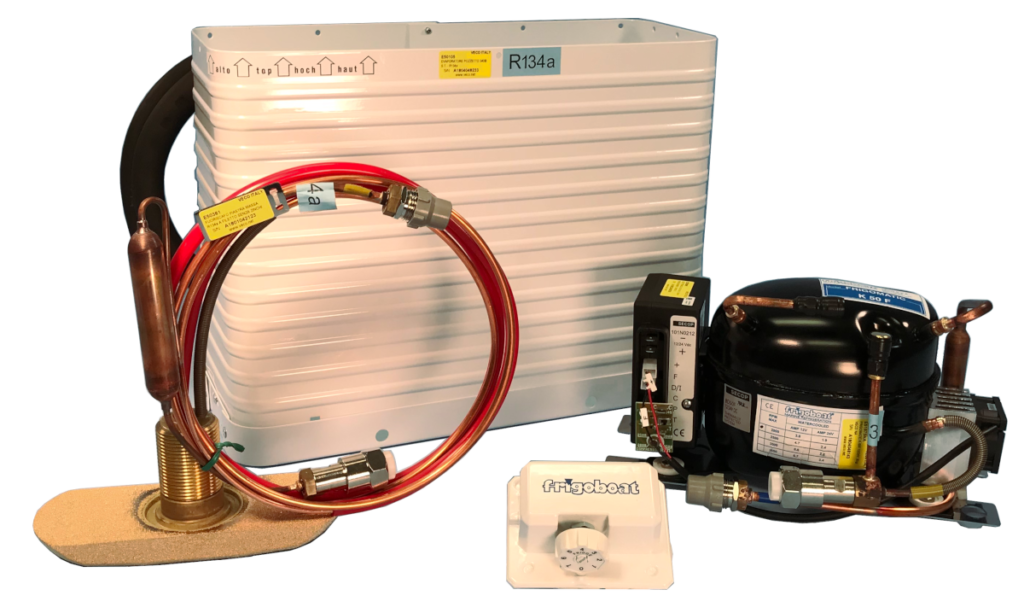

Frigomatic 12-24V refrigeration systems
Built to the highest specification and designed for self-installation, Frigomatic refrigeration systems deliver the best performance. 12V or 24V DC fridge or freezer system with the lowest power consumption, whether air cooled, keel cooled or pump water cooled.
Frigomatic has a wide range of evaporator plates and either air cooled, keel cooled or pump water cooled condensing sets to optimize the fridge or freezer system in an existing insulated cool box.
Easy to install with all the components pre-charged with R134a refrigerant and connected by Frigoboat’s unique re-sealing ‘quick couplings’ system and controlled with either mechanical or digital thermostats.
Easy to install
Wide range
Energy efficiency
Self-sealing couplings
How do I select my Frigomatic system?
1) Calculate the volume of the fridge/freezer
Volume is needed to select the right size condensing set and evaporator.
2) Choose the evaporator that best suits your box
Evaporators are available in different shapes; choose the right one based on the compartment shape and on what you need (fridge or freezer).
3) Select the most suitable condensing unit
Air cooled, water cooled, or keel cooled?
It depends from installation constraints, how much efficiency you want from the system, and from navigation conditions. See details in Condensing Unit section.
4) Select the thermostat that best fits your system
Fridge or freezer, digital or mechanical, Frigoboat offers a wide range of thermostats, for every possible need.
